Folding carton gluing machine for the pharmaceutical industry.

Diana Pharma.

As an entry-level folder gluer, the Diana Pharma meets the high demands of the pharmaceutical industry – especially, but not exclusively due to the high-performance embossing module.

Download the brochure Get in touch with us

Great performance in the smallest space.

The Diana Pharma folding carton gluing machine was especially developed to meet the requirements of the pharmaceutical industry. In addition to its compact design, the machine is characterized by exact folding and gluing, precise and powerful embossing and fast and uncomplicated changeovers. At just twelve meters, the Diana Pharma achieves a running speed of up to 250 m/min and, with the integrated Diana Braille module, provides up to 60,000 packages and more per hour with Braille.

The machine concept allows a wide range of pharmaceutical packaging, such as straight line and lock bottom cartons, to be processed quickly and in the smallest of spaces. HEIDELBERG in cooperation with Masterwork offers you a machine with the highest safety standards, proven Diana technology with a certain extra flexibility and an unbeatable price-performance ratio.

Technical data

Processable materials - Straightline cartons

Material (carton)	200 - 600 g/m²
Material (corrugated board)	Up to F-flute (without Braille)
Min. carton length	55 mm
Max. carton length	400 mm
Min. carton width	75 mm (45 mm optional)
Max. carton width	850 mm

Processable materials - Lockbottom cartons

Material (carton)	200 - 600 g/m²
Material (corrugated board)	Up to F-flute (without Braille)
Min. carton length	80 mm
Max. carton length	600 mm
Min. carton width	146 mm
Max. carton width	850 mm

Performance data

Max. speed	250 m/min (300 m/min without active braille module)
Max. machine length	ca. 12 m

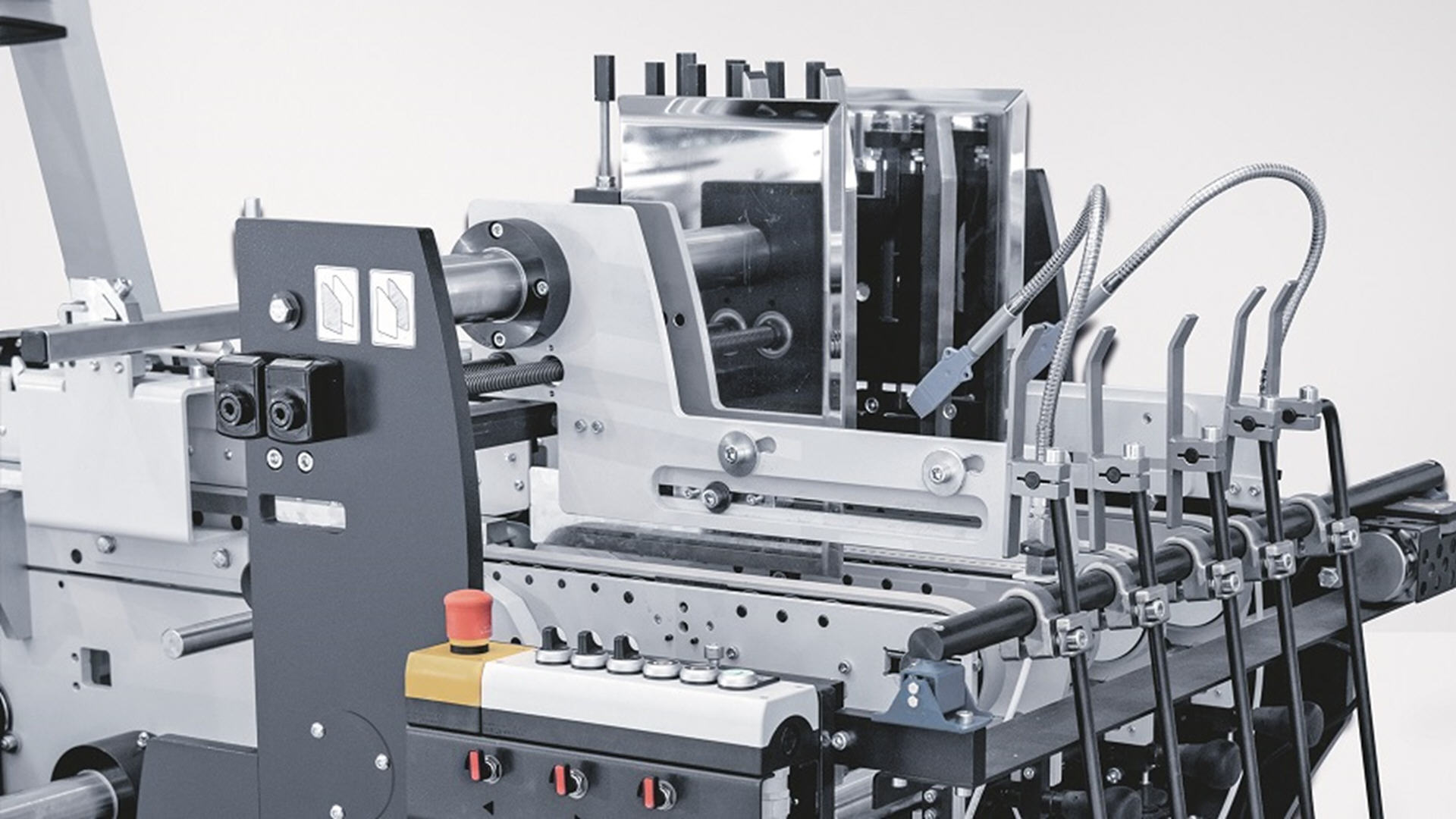

1. Feeder and alignment

Designed for fast set-up
Friction belts with fast positioning carriers
Friction belt change in less than a minute without pulling driving shafts
Precise length and pressure adjustable feeder gates for a good control of even odd shaped boxes
Included as standard:
- Electronically controlled with vibrator
- Separating air for carton blanks
- Suction feeder with two suction belts
- Two cleaning brushes for the feeder belts
- Stacking table
Alignment ruler sideways adjustable up to 40 mm

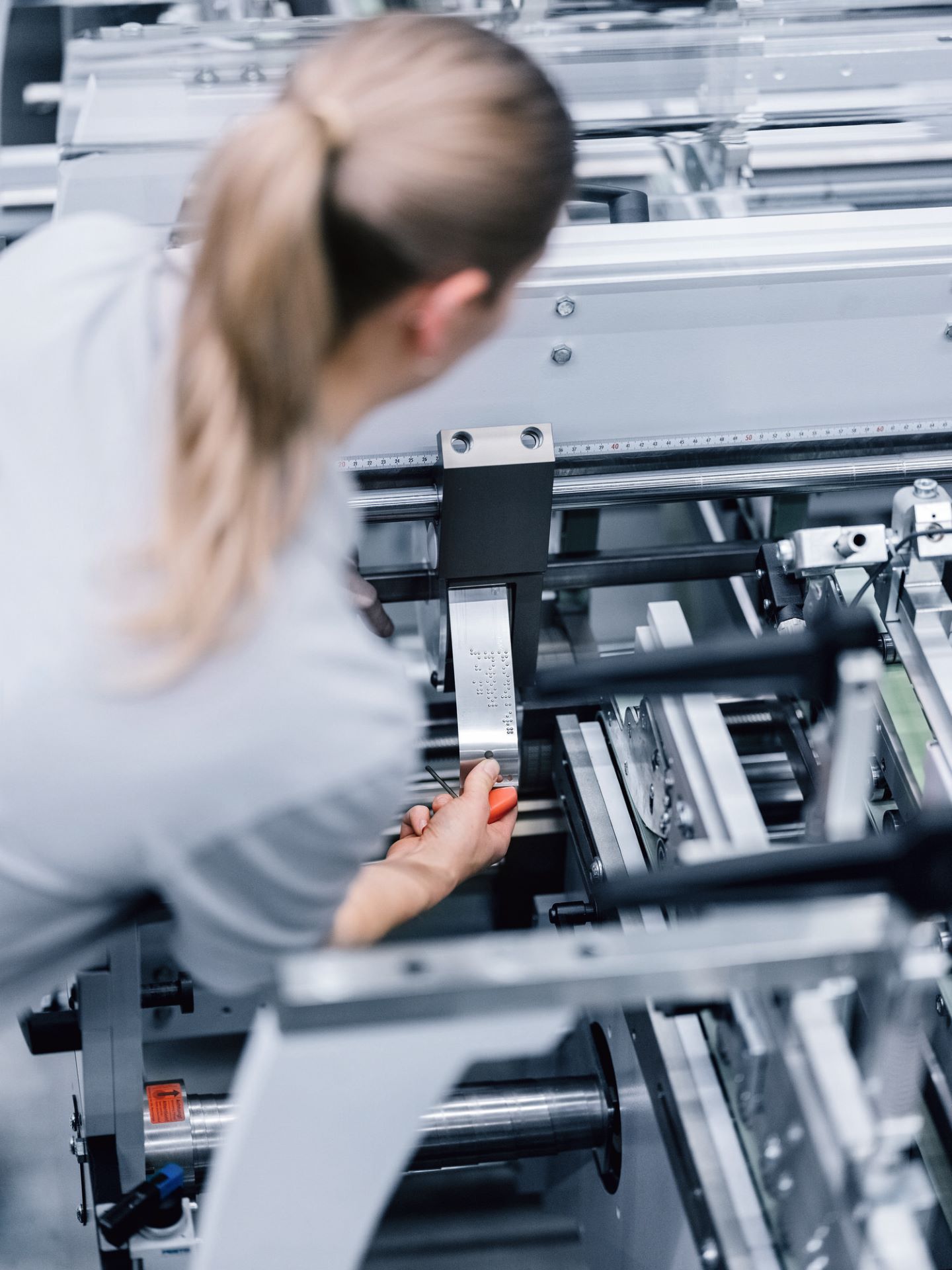

2. Braille-Module

Braille embossing tools can be positioned across the entire working width
Braille applications possible on all main panels of the carton
Module length is less than 1,400 mm, regardless of the number of Braille embossing tools
High productivity
Reliable carton transport at the time of embossing
System-inherent quality control of embossing
Optimum operability and good accessibility
Proven safety concept with the GS mark

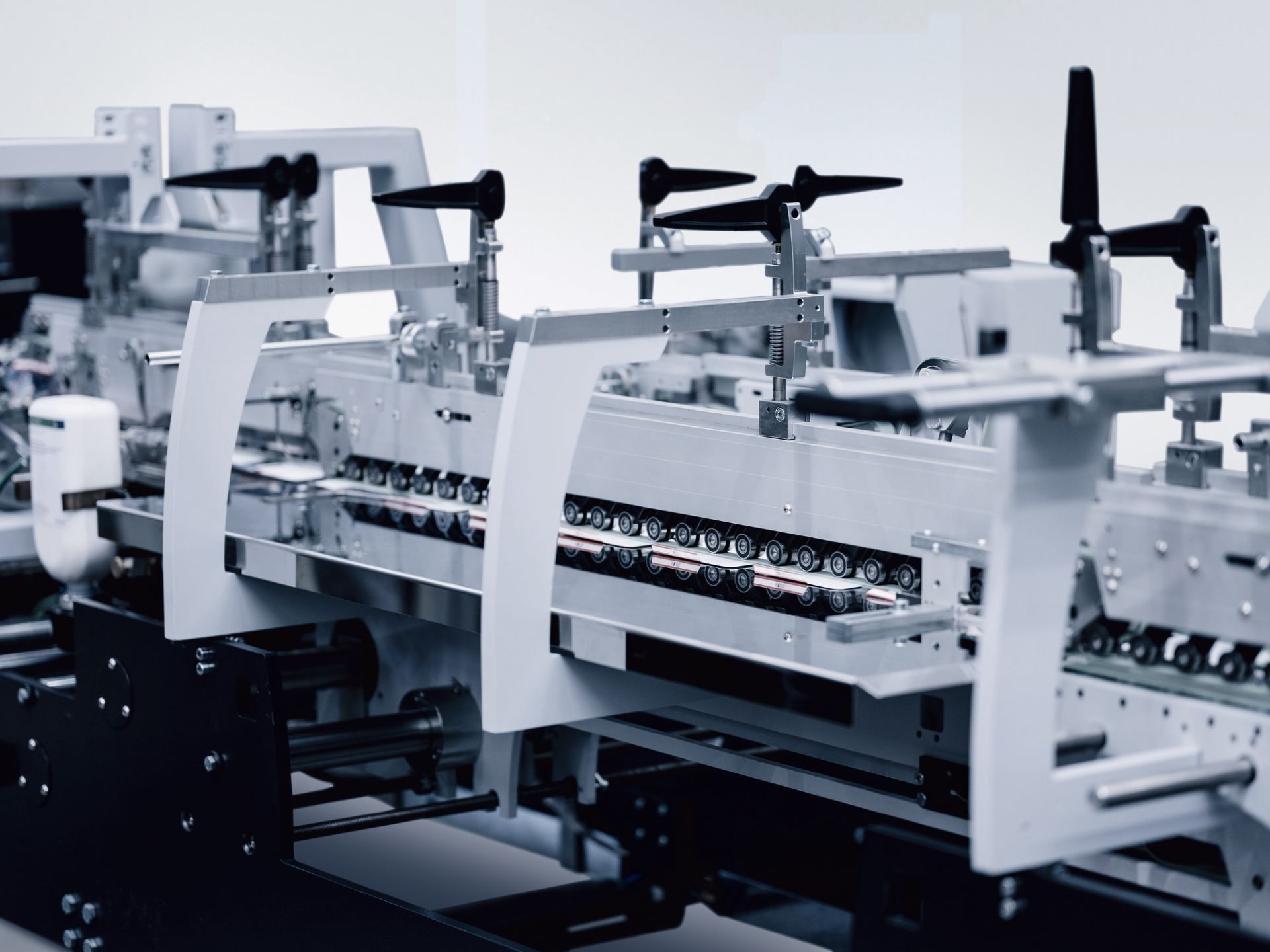

3. Prefolding module

Low side frame design gives perfect accessibility for the operator
Prebreaking for crease lines 1 and 3
Prepared for code reader
Lock bottom attachment (option)

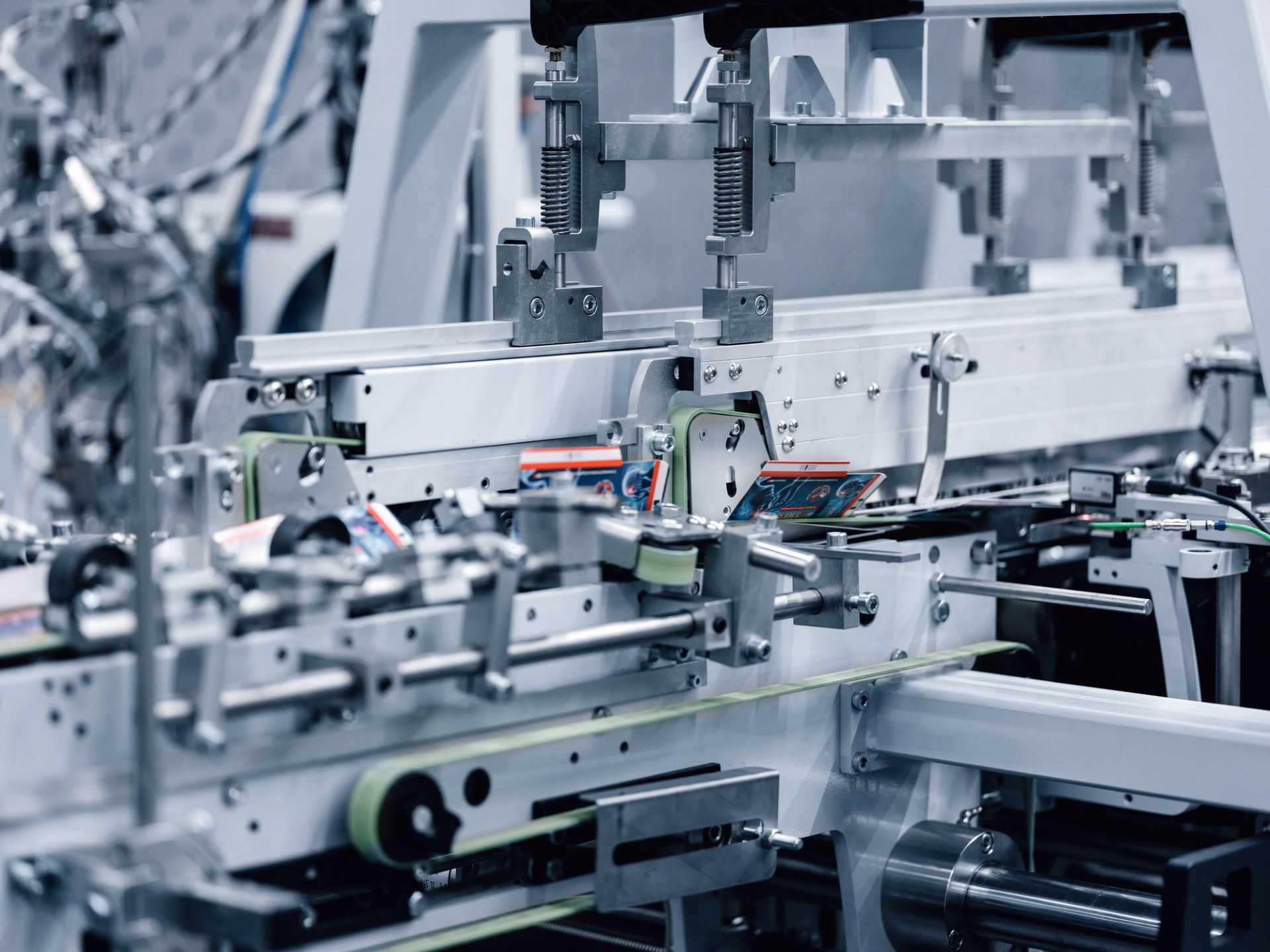

4. Folding station

Shiftable upper right and left roller bar
Left before right
Central carriers as option: upper and lower roller bars can be easily installed and removed due to the lightweight design
Belt fold down to 45 mm open carton width are possible (option)

5. Machine interface and automations

Touchscreen for machine operations
Easy, intuitive handling of machine interface with self-explanatory navigation menu
Manu-Set function
Prepared for MK Remote Service

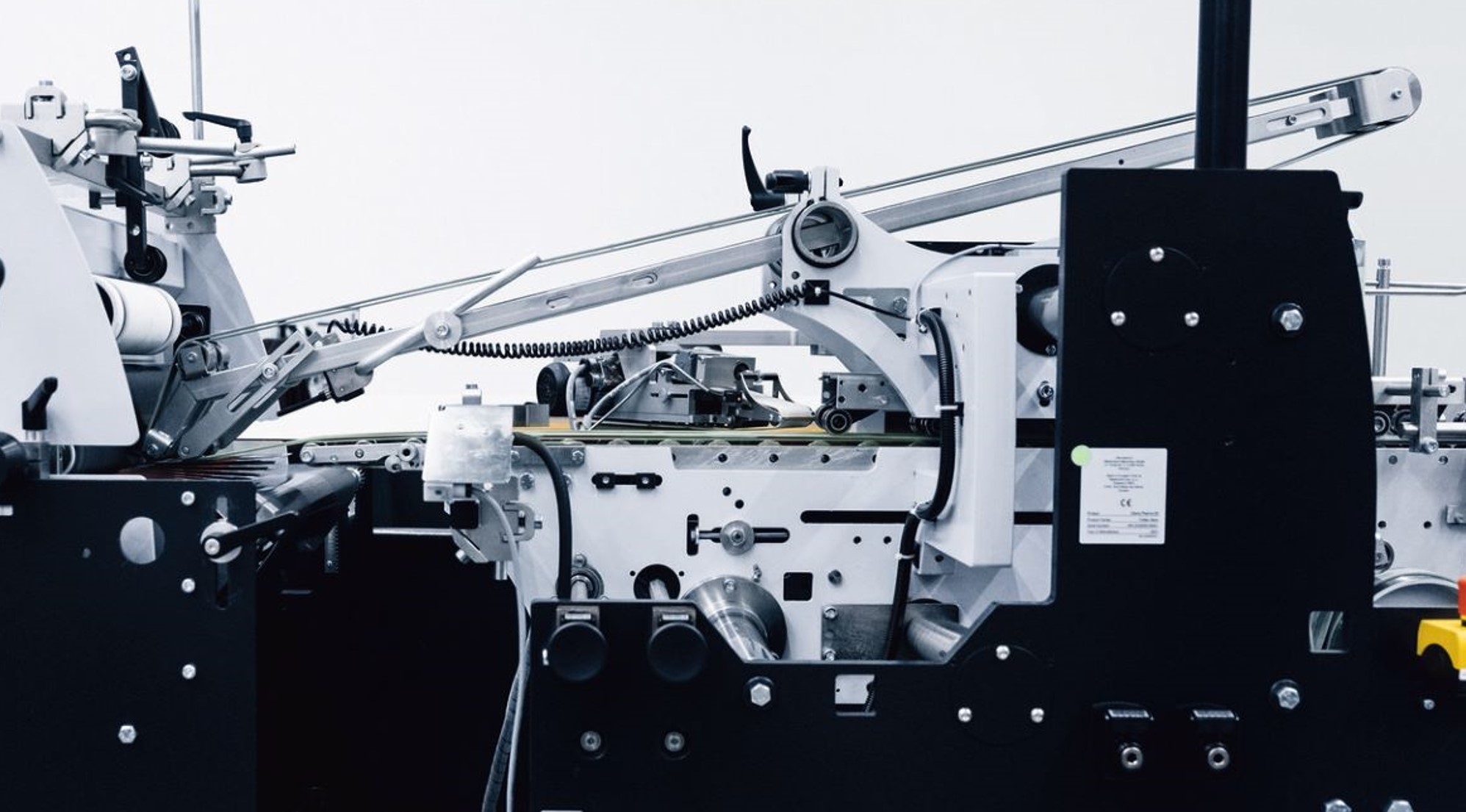

6. Transfer section

Two upper and lower carriers
Manual adjusting of upper carriers and lower carriers
Ejector with MK
- Linear ejctor
- Carton marking device

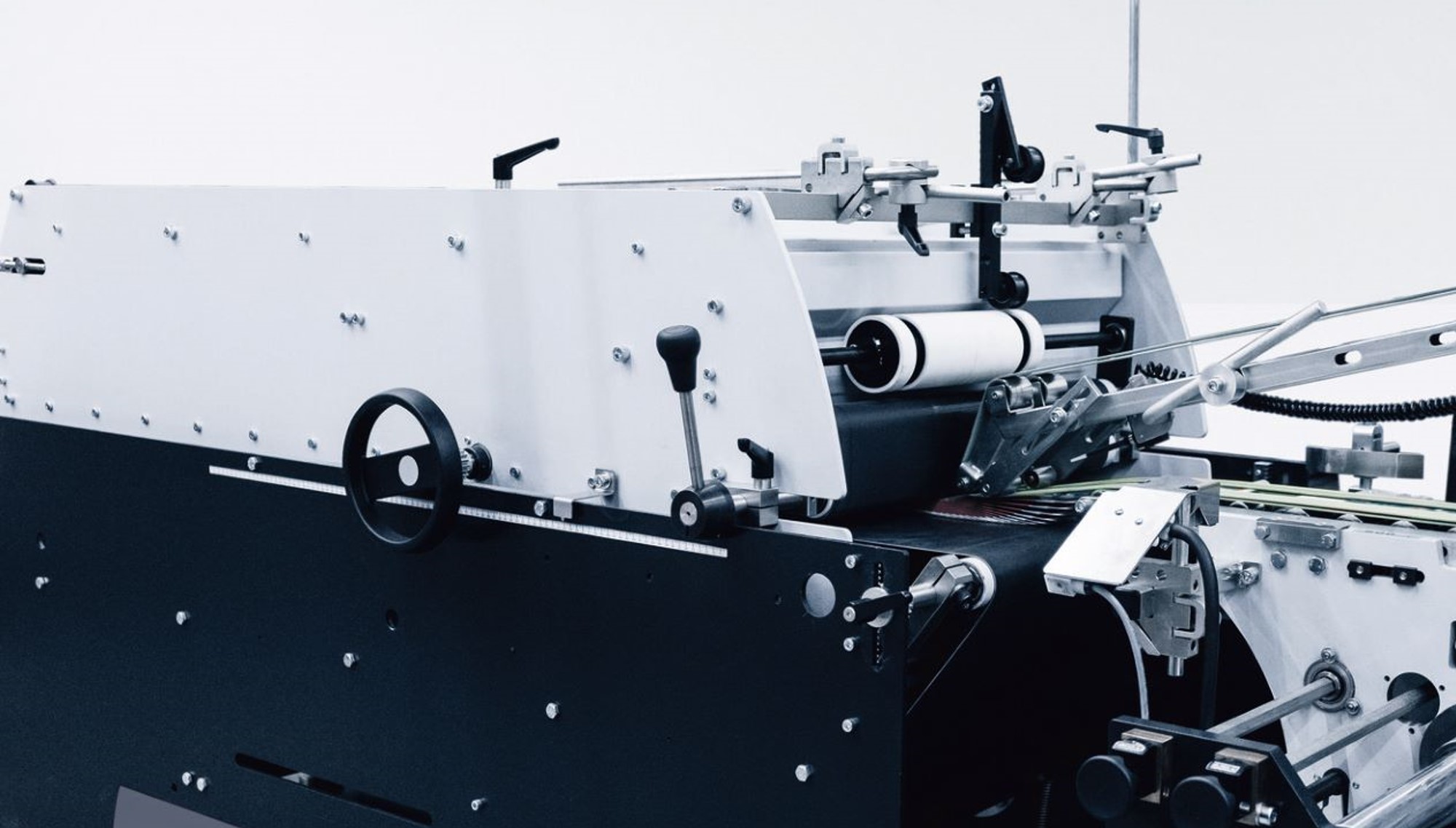

7. Compression section

600 mm wide compressing belt
1.6 m Pressing Section
Soft rubber belt for precise pressure balance
Start/Stop function
Upgrade to longer compression and delivery possible
